Evaluation Board for IPTV to DTV

Products Photo	Model Name	Overview	Remark

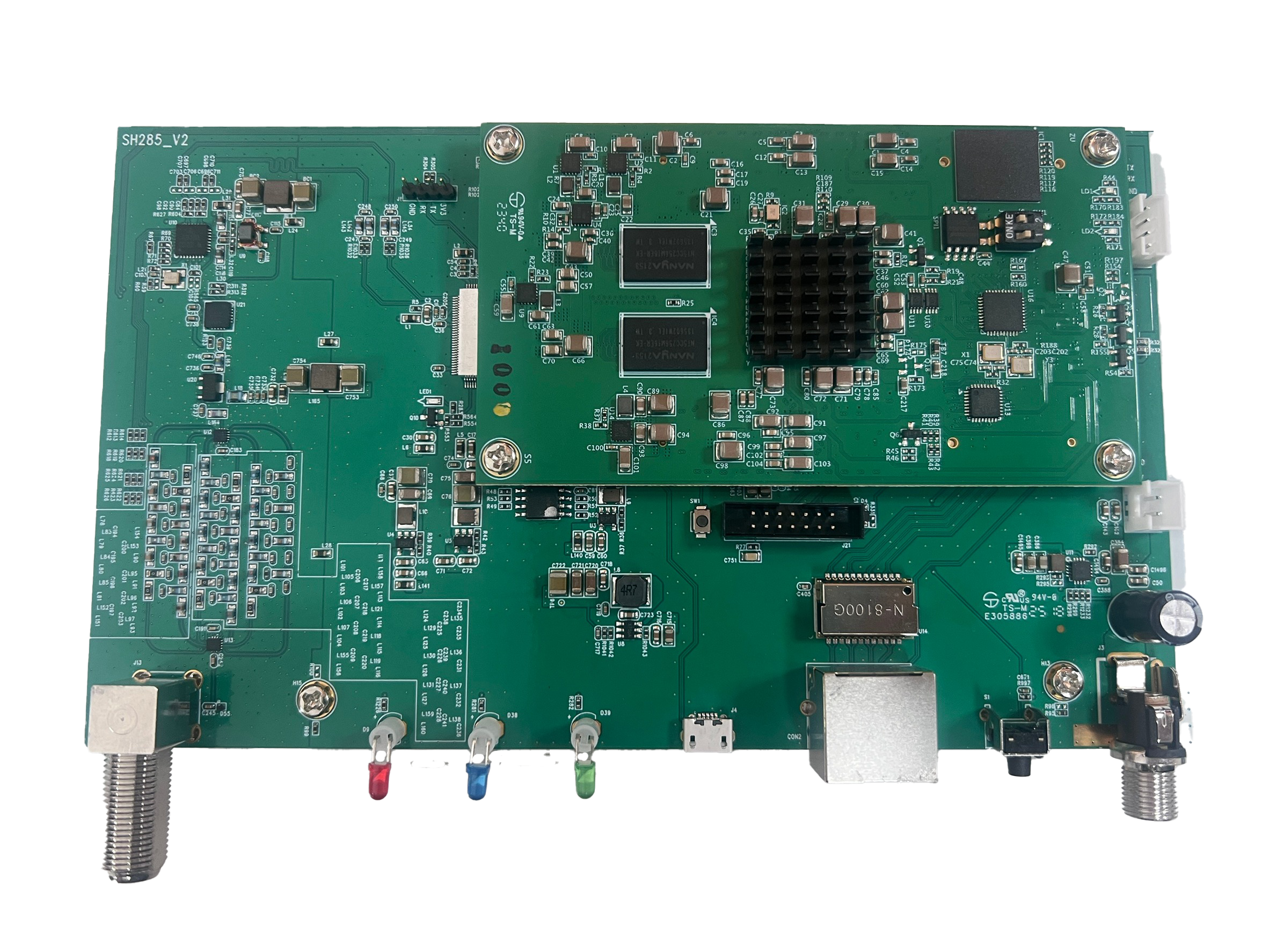

	AMD-R10	* Multiple IP inputs and RF outputs * Adjustable frequency range and bandwidth * Supports streaming protocols such as (HLS, RTSP, RTMP, Multicast/Unicast UDP/RTP)x4, SPTS / MPTS * Remote management and configuration (e.g., Web GUI) * Support modulator type: DVB-T, DVB-C, ISDB-T, ATSC

Evaluation Board for Multi-Interface to DTV

Products Photo	Model Name	Overview	Remark
	A3 Demo Board	* Input Interfaces: Supports Ethernet (UDP/RTP) , USB Port , TS Serial (up to 2) , TS Parallel (up to 4) , and ASI Port for data transmission to A3 chip * Output interfaces: Receives modulated signals through the RF&ASI interfaces * Support modulator type: DVB-T, DVB-C, ISDB-T, ATSC, J.83B

Evaluation Board for HDMI to IPTV

Products Photo	Model Name	Overview	Remark

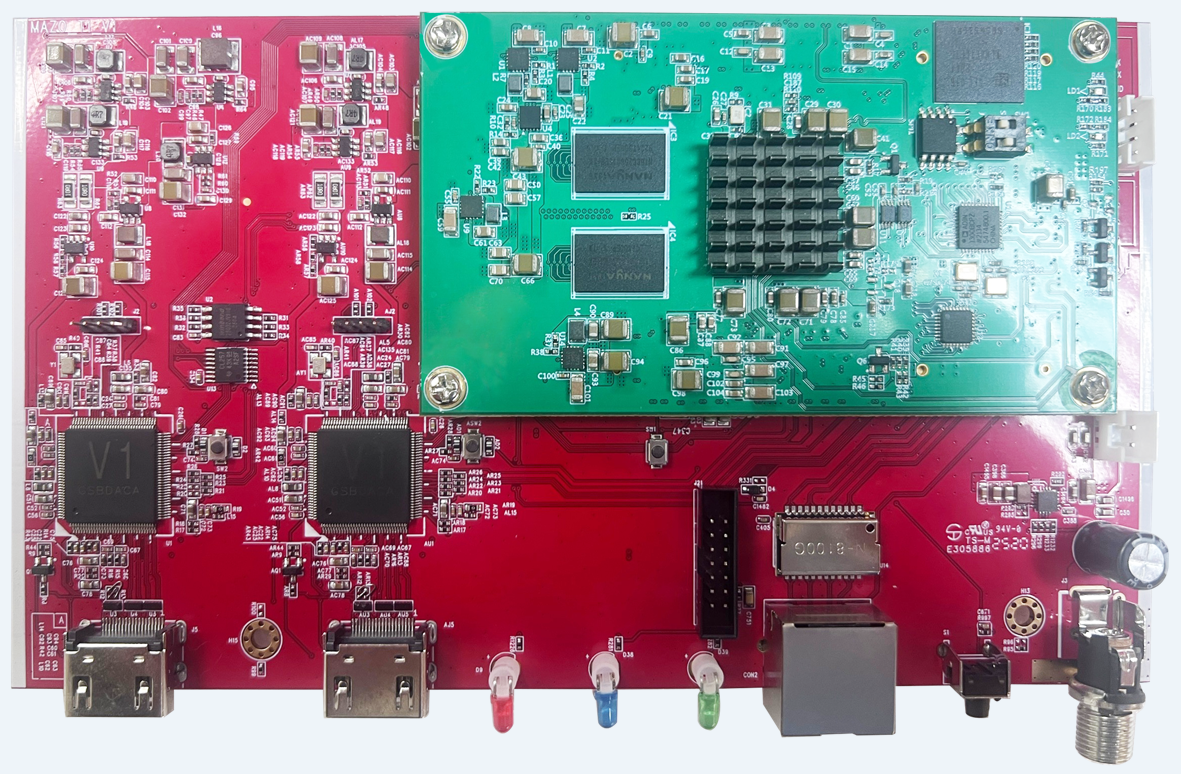

	AMD-T10	* 2 x HDMI input * Output support IPTV, including UDP, RTP, HLS, and RTMP * Easily receive a wide variety of channels by installing a dedicated app on Google TV * Output video format: H.264 * Output audio format: AAC

USB Modulator

Products Photo	Model Name	Overview	Remark

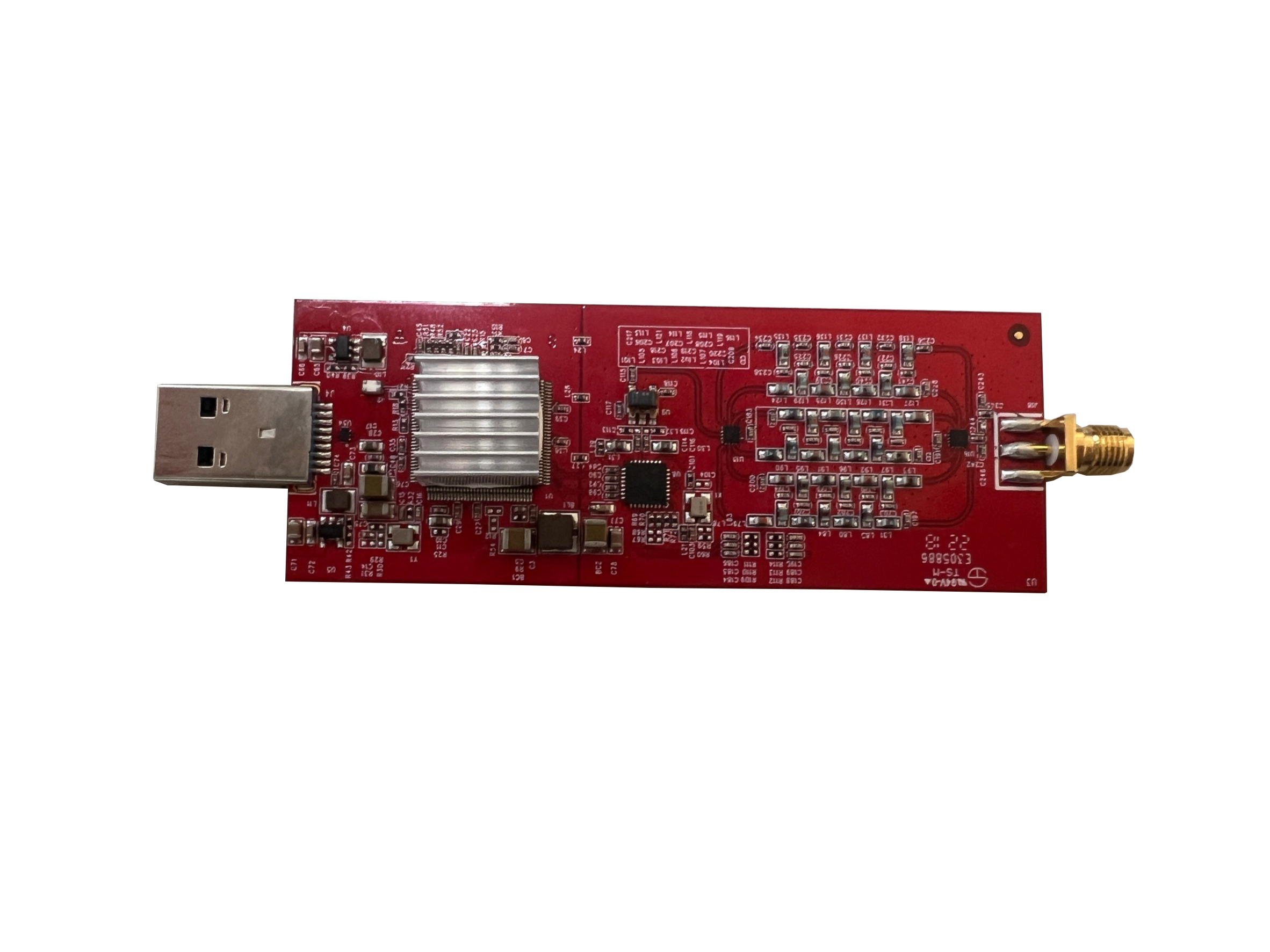

	AMD-U3	* Powered from the USB port * High plasticity and easy operation * Supports multiple CPU(Intel, AMD, ARM) * Support 50Mhz – 950Mhz TV band operation * Support USB 2.0 Device interface for control and TS Data lnput * Supports multiple operating systems and free SDK(GitHub)(Windows and Linux) * GitHub SDK: https://github.com/Astrometa-Co-Ltd/Astrometa_SDK

Tuner NIM Module

Products Photo	Model Name	Overview	Remark

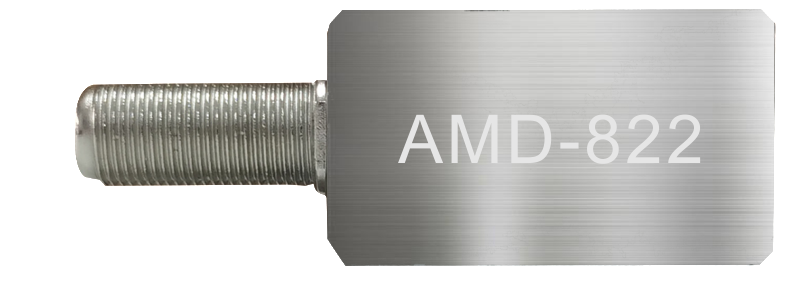

	AMD-822	* Tuner/demodulator integrated LSI * Compliance with terrestrial/cable * broadcasting standards in various countries * Support modulator type: ATSC1.0, DVB-T/T2/, DVB-C/C2, ISDB-T/C, J.83B
